Provide unlimited possibilities for your polyurethane one-stop solution

SPC-10081 rigid foam polyol for refrigerator insulation
Refrigerator PU foam insulation core

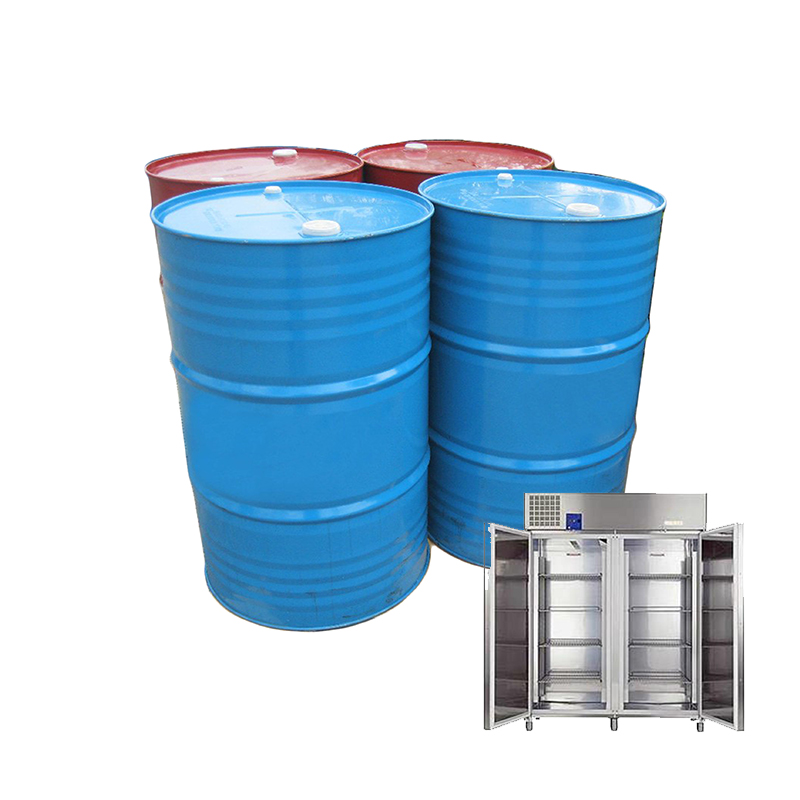

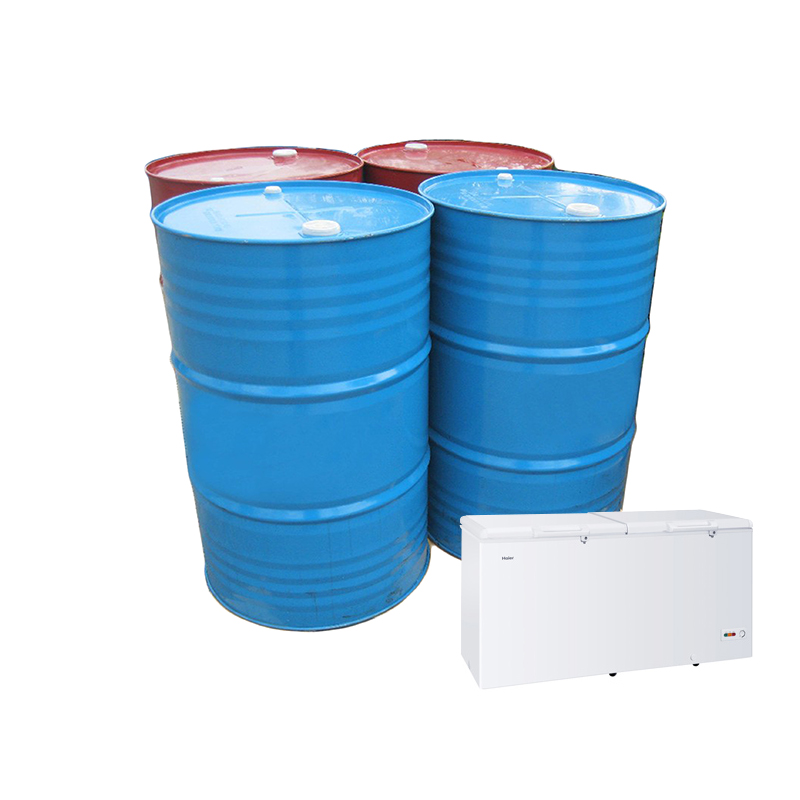

SPC-10081 rigid foam polyol drum packaging

Rigid Foam Polyol SPC-10081 for Refrigerators & Freezers

SPC-10081 is a cyclopentane-blown rigid foam polyol for refrigerators, freezers and appliance insulation. Excellent flowability with even, low-thermal-conductivity foam (≤ 21 mW/m·K), ≥ 92% closed-cell and excellent low-temperature dimensional stability. Demould time 6–8 min; combined with MDI on manual or high-pressure lines.

Get a Free Quote

SPC-10081 is a cyclopentane-blown rigid foam polyol system formulated specifically for refrigerators, freezers and appliance insulation. Combined with MDI, it delivers a low-thermal-conductivity, high-closed-cell foam core with excellent low-temperature dimensional stability — engineered for energy-efficient, dimensionally stable cabinet and door foaming on both manual and high-pressure lines.

≤ 21
Thermal conductivity
mW/(m·K)

≥ 92%
Closed-cell
rate

≥ 35
Moulding density
kg/m³

≥ 150
Compressive strength
kPa

≤ 0.5%
Dim. stability
(−20 °C)

Key Features

Low thermal conductivity
≤ 21 mW/(m·K) at 15 °C for energy-efficient appliances.
High closed-cell content
≥ 92%, for strong insulation and moisture resistance.
Low-temperature dimensional stability
≤ 0.5% volume change at −20 °C (24 h).
Good flowability & even density
Uniform foam throughout the cabinet/door cross-section.
Cyclopentane-blown
Environmentally friendly, zero-ODP blowing agent.
Customizable formulation
Reactivity and density tuned to your line. OEM/ODM supported.

Applications

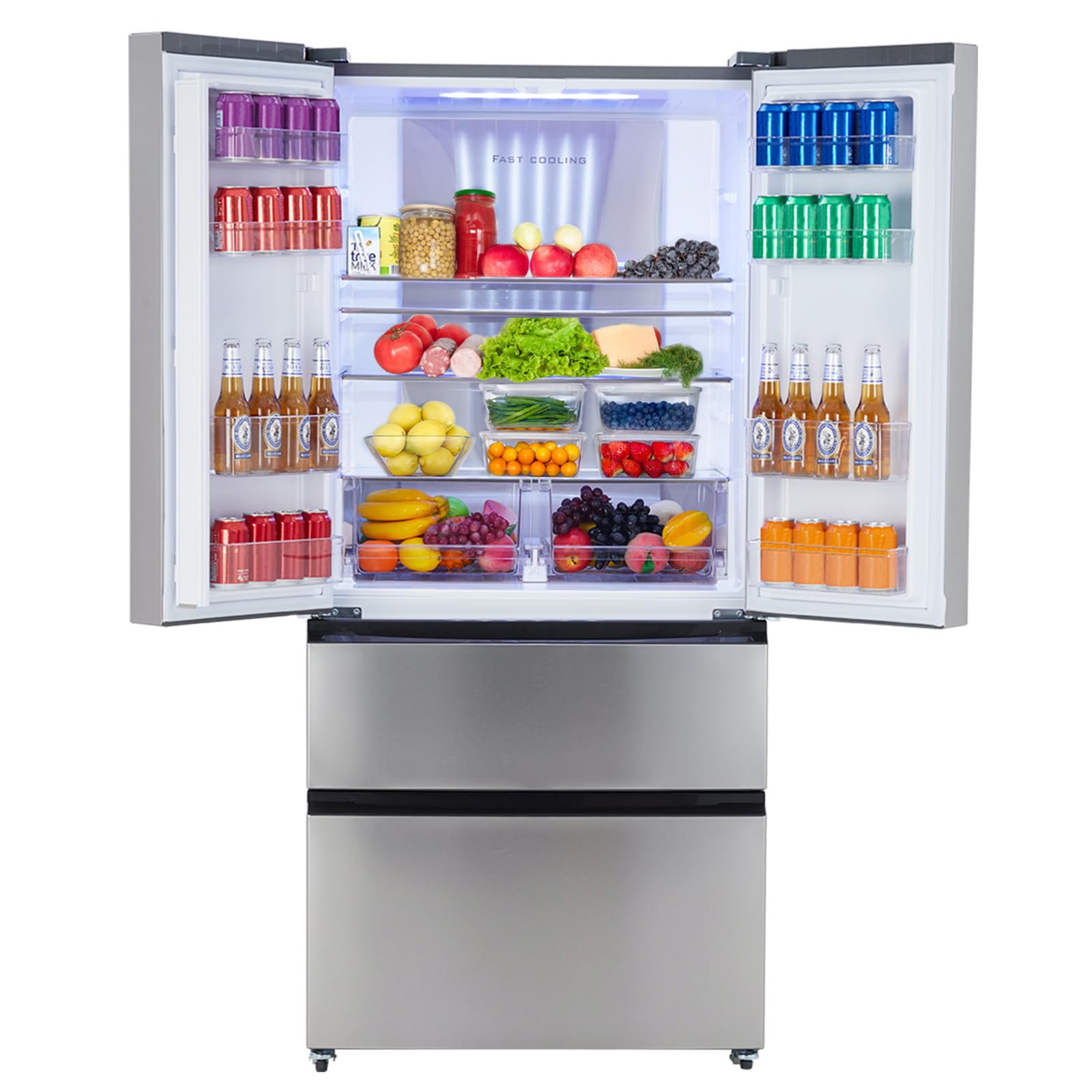

French-door refrigerator insulated with rigid PU foam
Household Refrigerators

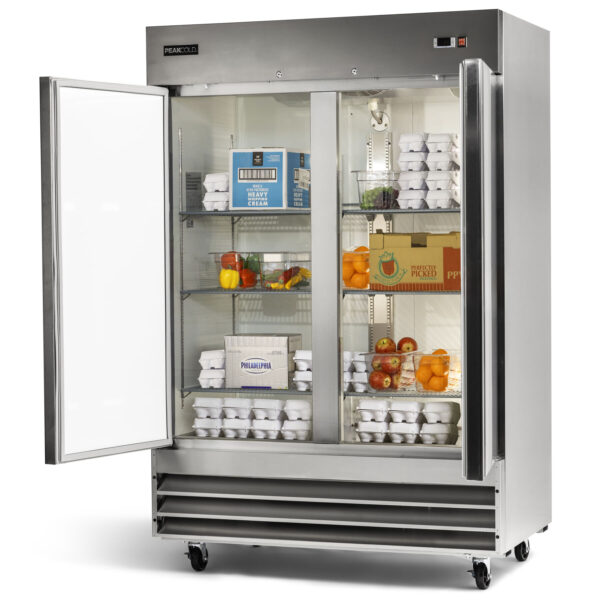

Commercial reach-in refrigerator with rigid PU foam insulation
Commercial Refrigerators

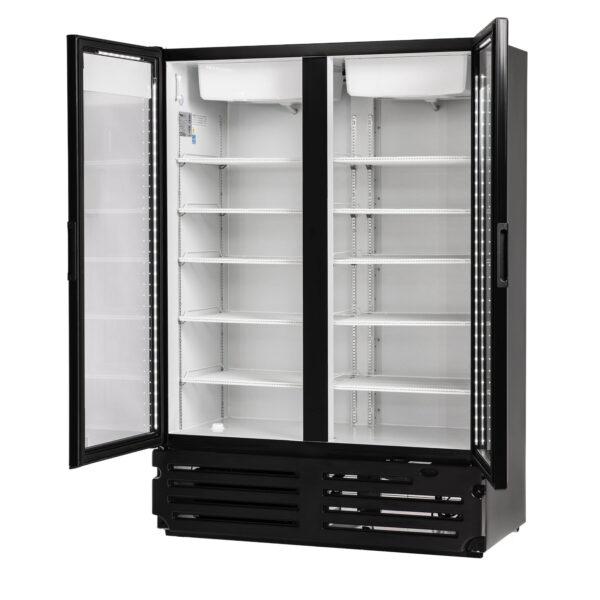

Glass-door display cooler and merchandiser foam insulation
Display Coolers & Merchandisers

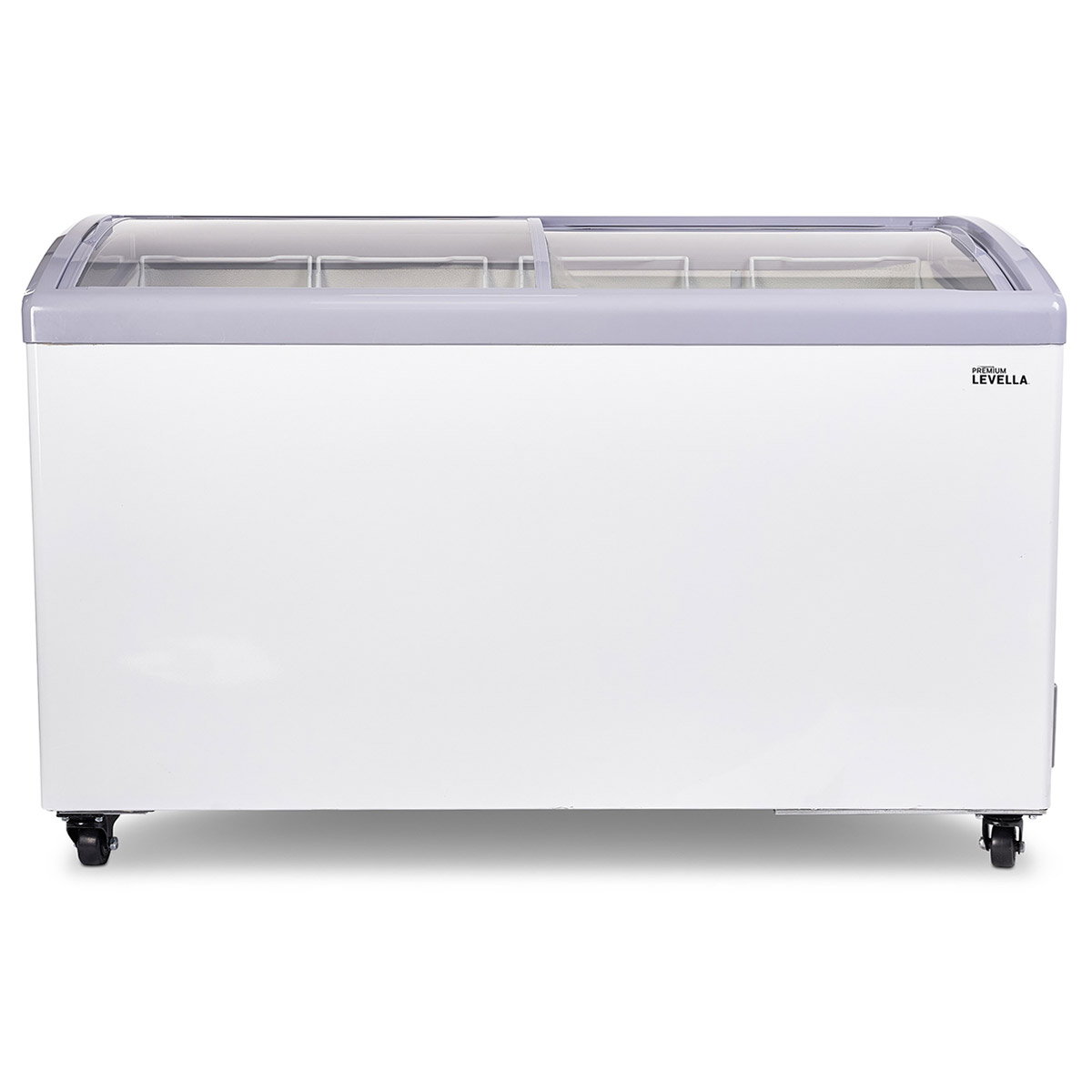

Chest freezer with rigid PU foam insulation core
Chest & Display Freezers

Technical Specifications

Physical Properties

Item Unit Value
Appearance — Pale yellow transparent liquid
Hydroxyl Value mgKOH/g 370–410
Dynamic Viscosity (25 °C) mPa·s 2800–4000
Specific Gravity (20 °C) g/ml 1.05–1.07
Storage Temperature °C 10–25
Storage Stability month 6

Recommended Ratio (pbw)

Component Parts by weight
SPC-10081 100
Cyclopentane (C-pentane) 12–14
MDI 136–145

Technology & Reactivity

Exact values vary with processing conditions.

Item Unit Manual (low-pressure) High-pressure machine
Material Temperature °C 20–25 20–25
Mould Temperature °C 35–40 35–40
Cream Time s 10–16 8–12
Gel Time s 70–90 45–60
Tack-free Time s 100–120 80–100
Free-rise Density kg/m³ 25–26 24–25.5

Foam Performance

Item Test Method Index
Moulding Density GB/T 6343 ≥ 35 kg/m³
Closed-cell Rate GB/T 10799 ≥ 92%
Thermal Conductivity (15 °C) GB/T 3399 ≤ 21 mW/(m·K)
Compressive Strength GB/T 8813 ≥ 150 kPa
Dimensional Stability (24 h, −20 °C) GB/T 8811 ≤ 0.5%
Dimensional Stability (24 h, 100 °C) GB/T 8811 ≤ 1.0%

Typical values tested by BlendPolyol, for reference only; not a binding specification.

Technical Documents

MSDS and COA available on request — contact us.

Processing & How to Use

1

Condition
Bring SPC-10081 and MDI to a material temperature of 20–25 °C; keep the mould at 35–40 °C.

2

Mix
Combine SPC-10081 : MDI at 100 : 136–145 pbw with 12–14 pbw cyclopentane, using low- or high-pressure foaming equipment.

3

Pour & Foam
Cream 8–16 s, gel 45–90 s, tack-free 80–120 s for even, well-distributed foam density.

4

Cure & Demould
Allow to cure in the mould; demould after about 6–8 min depending on foam thickness.

Packaging, Storage & Handling

Packaging
Polyol supplied in 200 kg net iron drums; MDI typically in 250 kg drums. Palletised for export; bulk volumes on request.
Storage
Store sealed at 10–25 °C in a dry, well-ventilated area, away from moisture. Shelf life 6 months under recommended conditions.
Handling & Safety
Avoid contact with eyes and skin; wear safety glasses. Wash affected skin with soap and water; flush eyes with plenty of water and seek medical attention. Full MSDS available on request.

The Complete PU Foam System

SPC-10081 is the polyol component of a two-component rigid foam system. For a complete, line-ready solution we also supply the matching raw materials:

Which Rigid Foam Polyol Do You Need?

Grade Best for
SPC-10081 (this page) Refrigerators, freezers & appliance insulation You are here
Panel-grade rigid foam Insulated & sound-proof sandwich panels View →
SPC-1006 sandwich panel Continuous-line sandwich panel insulation View →
Browse all grades Full rigid foam polyol range View all →

Why BlendPolyol

10+ years in PU raw materials
Specialised blended-polyol manufacturer serving foam producers worldwide.
Custom formulation
Reactivity and density tuned to your line, cabinet design and blowing agent.
Batch-consistent quality
Every batch tested in-house; TDS, MSDS and COA provided with shipment.
Global export & fast reply
Export to EU, Latin America, Asia and beyond — we respond within 24 hours.

From Sample to Bulk Order

1. Request a sample
Tell us your application and target density — we send a free sample with TDS & MSDS.
2. Validate on your line
Trial the system; we provide technical support and fine-tune reactivity/density as needed.
3. Scale to bulk
Confirm the formula and order in bulk with flexible MOQ and tiered lead times.

Frequently Asked Questions

What blowing agent does SPC-10081 use?
A cyclopentane (C-pentane) blown system — an environmentally friendly, zero-ODP blowing agent at a recommended 12–14 pbw.
What foam density and closed-cell rate does it achieve?
Moulding density ≥ 35 kg/m³ with a closed-cell rate ≥ 92%, giving low thermal conductivity (≤ 21 mW/(m·K)) for efficient refrigerator and freezer insulation.
Is it suitable for both manual and high-pressure machine foaming?
Yes — recommended reactivity is provided for both manual (low-pressure) and high-pressure machine mixing; see the reactivity table above.
What is the minimum order quantity?
MOQ is flexible for trial runs and line validation, with tiered lead times for bulk volumes.
Can the formulation be customized?
Yes. Reactivity and density can be tuned to your line and cabinet design. OEM/ODM is supported — request a TDS, MSDS and a free sample, and we reply within 24 hours.
Need SPC-10081 for your refrigerator line?
Get a tailored quote, full TDS & MSDS, and a free sample for line validation.
✓ Custom formulation✓ TDS · MSDS · COA✓ Reply within 24 h
