PU Elastomer Raw Material
For PU Wheels and Rollers
High-performance polyurethane elastomer systems engineered for wheels, rollers, and industrial rotating components. Designed for excellent wear resistance, load capacity, rebound performance, and long-term durability across demanding industrial applications.
PU Elastomer Materials for High-Performance Wheels and Rollers
Blendpolyol supplies polyurethane elastomer raw material systems for manufacturing industrial wheels, rollers, caster wheels, conveyor rollers, forklift wheels, printing rollers, and heavy-duty load-bearing components.
Our elastomer formulations combine:
- High abrasion resistance (DIN 53516: 30–80 mm³)
- Excellent resilience (Rebound 35–55%)
- Strong load-bearing performance (tested per ASTM D412)
- Hydrolysis resistance (verified per ASTM D1183 1,000-hour aging)
- Stable dynamic mechanical properties under continuous load cycling
We support both hot cast polyurethane elastomer systems (TDI-based + MOCA / HQEE chain extender) and cold cast polyurethane elastomer systems (MDI-based prepolymer), with customizable hardness, rebound, and processing performance for different industries and operating conditions.
Blue PU elastomer guide rollers on a production conveyor — Shore A 85, hot-cast formulation.
Why Choose Our PU Elastomer Systems
Excellent Abrasion Resistance
Extended service life under continuous friction and heavy-duty operation. DIN 53516 abrasion loss as low as 30 mm³ for hot-cast TDI systems.
High Load Capacity
Suitable for heavy industrial wheels and high-pressure roller applications up to 30 MPa sustained compressive load.
Adjustable Hardness Range
Formulation design from soft elastomer (Shore A 60) to ultra-hard roller systems (Shore D 75), in a single product family.
Strong Dynamic Performance
Stable rebound and deformation resistance during continuous movement. Tested through 1 million cycles with <5% strength loss.
Hydrolysis & Chemical Resistance
Polyether-based variants suitable for humid environments (≥ 90% strength retention after 1,000 h at 50°C / 95% RH).
Stable Processing Performance
Optimized viscosity (1,500–3,500 cps at 80°C) and reaction control for smooth casting and demolding on automated lines.
Typical Applications
Industrial Wheels
Heavy-duty transport wheels, AGV wheels, logistics systems. Shore A 85–95 typical.
Forklift Wheels
High-load PU systems with excellent compression resistance. Class 4 / Class 7 fork-truck rated.
Conveyor Rollers
Wear-resistant elastomers for automated conveying equipment. Long service life under continuous belt loading.
Printing Rollers
Stable elasticity and smooth surface finish for precision applications. Solvent and ink chemistry resistance.
Mining & Heavy Industry Rollers
Impact-resistant polyurethane systems for harsh environments. Shore D 60–75 for crusher and screening applications.
Caster Wheels
Low-noise and high-rebound elastomer materials. Standard caster sizes from 3"–12" diameter.

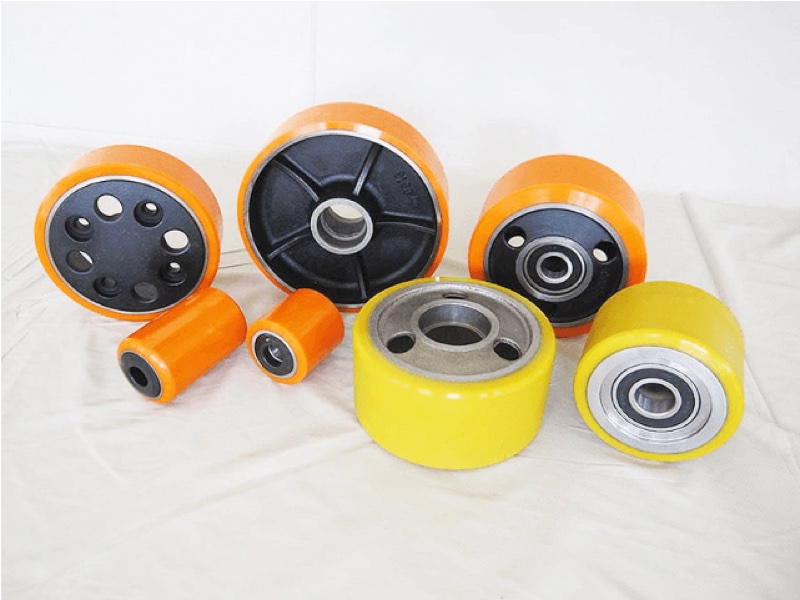

Forklift wheel — Class 4 / Class 7 forktruck rated, Shore A 90-95

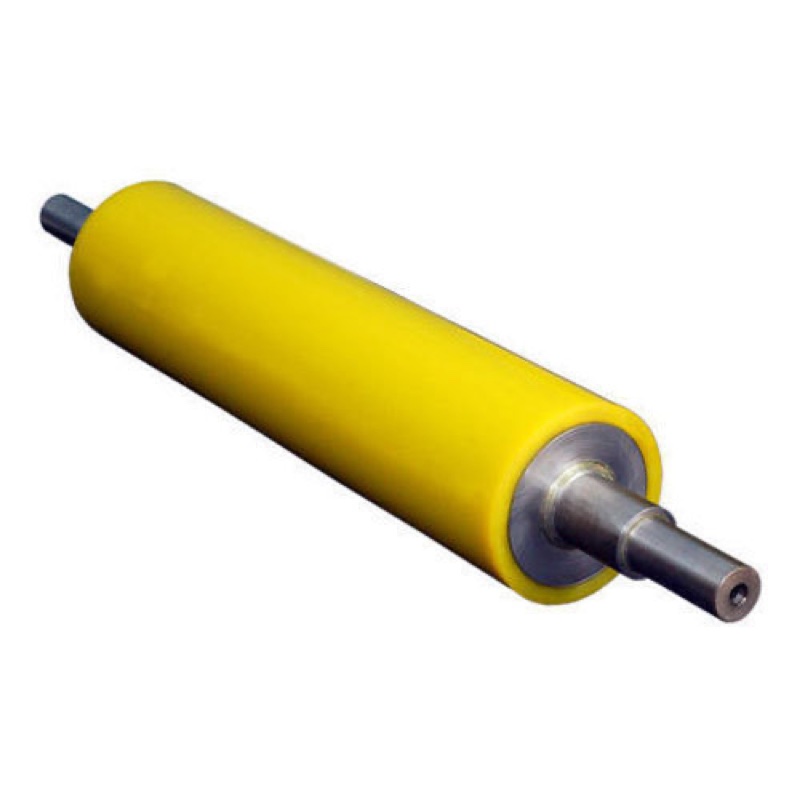

PU coating roller — solvent / ink resistance for printing & paper-mill
Available PU Elastomer Raw Material Systems
Typical Technical Parameters
Actual parameters can be customized according to formulation design and application requirements.
Compatible Production Processes
Vacuum Casting
For precision PU rollers and technical elastomer parts.
Open Mold Casting
Suitable for large industrial rollers and wheels.
Centrifugal Casting
Used for uniform high-speed roller production.
Automated Elastomer Production
Compatible with polyurethane casting machines and automated systems.
One-Stop PU Elastomer Solution
Besides polyurethane raw materials, Blendpolyol also provides matched equipment and tooling — making us a complete production-line partner, not just a chemical supplier.
- PU elastomer casting machines (manual, semi-auto, fully-automatic)
- Metering and mixing systems (low-pressure & high-pressure)
- PU molds (steel / aluminum, custom design)
- Heating systems (drum heaters, mold heaters, oven systems)
- Complete production line solutions with engineering support
We support customers from raw material selection → equipment matching → process optimization → mass production.
Customized Formulation Support
Blendpolyol provides customized polyurethane elastomer solutions based on:
We help customers optimize both material performance and production efficiency for long-term stable manufacturing.

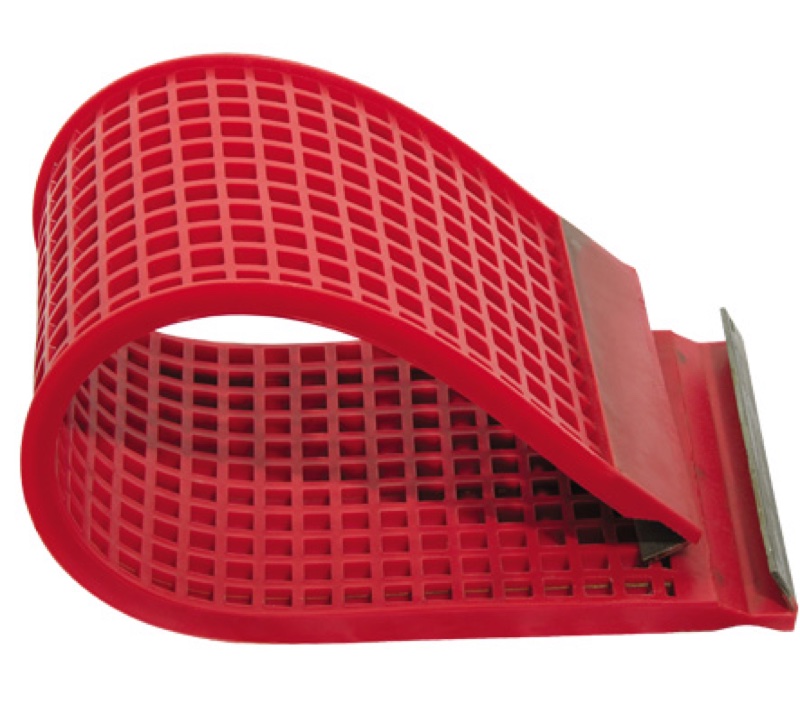

PU sieve panel — mineral processing, abrasion 30 mm³ DIN 53516

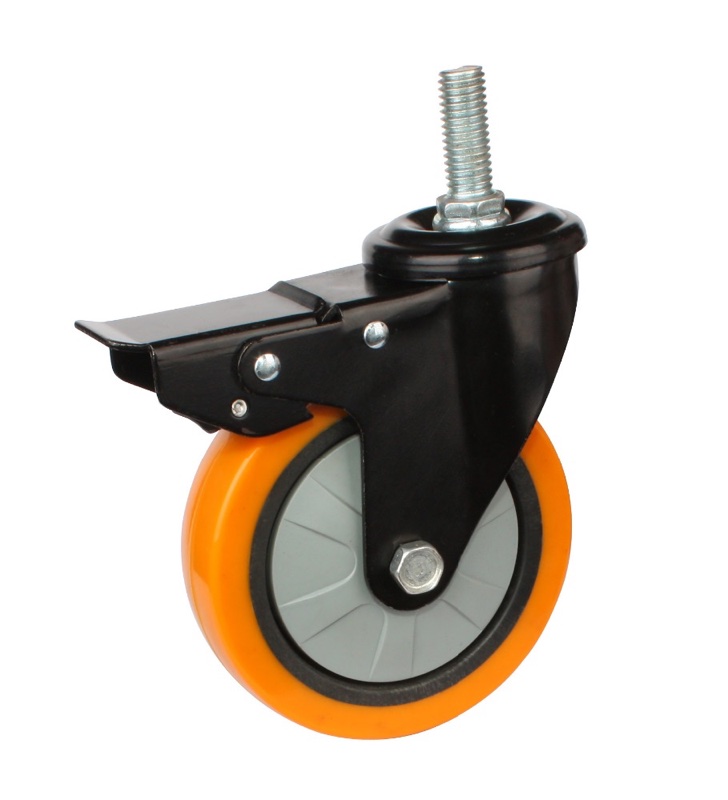

PU caster wheel — low-noise, high rebound logistics use
Frequently Asked Questions
What hardness range can you provide?
We provide formulations from soft elastomer systems (Shore A 60–70) to ultra-hard industrial roller materials (Shore D 70–75). Specific hardness is tuned via prepolymer NCO content + chain extender ratio.
Which is better for rollers — MDI or TDI systems?
MDI systems usually provide higher load-bearing performance and lower toxicity (no free TDI vapor) — preferred for indoor casting. TDI systems offer better elasticity and rebound, preferred for dynamic-load applications where impact absorption matters.
Can you customize formulations?
Yes. We can customize hardness, rebound, abrasion resistance, and processing characteristics. Custom formulation MOQ is typically 1,000 kg; development cycle 3–5 weeks including bench testing and customer-site trial.
Are your systems suitable for automated production?
Yes. Our materials are compatible with polyurethane casting machines and automated dispensing systems. Viscosity profile (1,500–3,500 cps at 80°C) is engineered for stable gear-pump dispensing on continuous-throughput lines.
Do you provide complete production solutions?
Yes. We provide raw materials, casting machines, mixing systems, custom molds, heating systems, and production line engineering support. End-to-end onboarding from formulation selection to mass production typically takes 3–4 months.
What's the MOQ for first commercial order?
1,000 kg combined prepolymer + chain extender for first commercial order. 5–20 kg pilot samples available free for qualified buyers. FCL 20'GP shipments hold ~18,000–22,000 kg.
