Polyurethane materials are among the most versatile polymers in modern industry, widely used in soft foams, rigid insulation, elastomers, coatings, and adhesives.
At the heart of every polyurethane system is the polyol, a hydroxyl-terminated polymer that reacts with isocyanates to form the PU network.
Among all polyol families, polyester polyols and polyether polyols dominate global production, yet their structures, properties, processing behavior, and application performance differ significantly.
What Are Polyester Polyols?

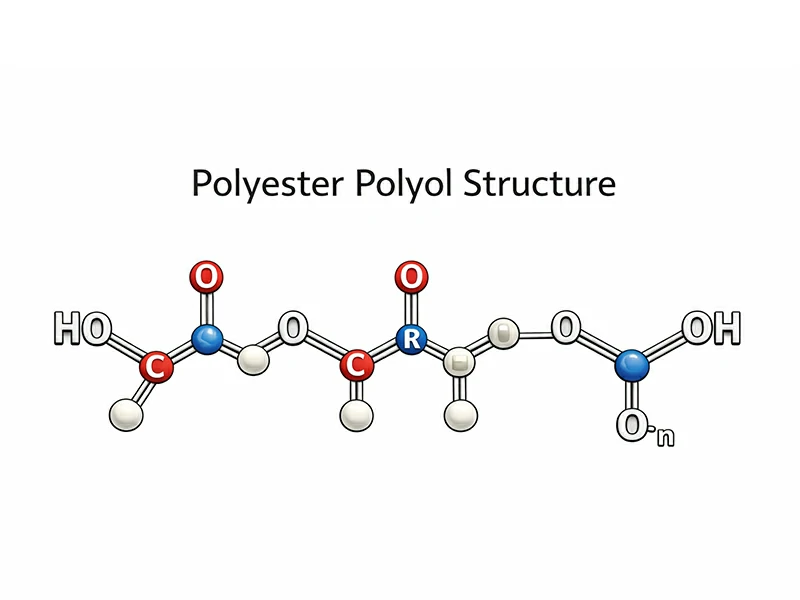

Chemical Structure
Polyester polyols are produced through condensation reactions between dibasic acids (adipic acid, phthalic acid, etc.) and diols (ethylene glycol, propylene glycol, butanediol). Water or small molecules are released as by-products, forming ester bonds along the chain.
Because of this structure, polyester polyols contain –COO– ester groups in addition to hydroxyl groups. These polar ester segments provide strong intermolecular forces, resulting in:
- Higher viscosity
- Better mechanical strength
- Greater adhesion to substrates
- Improved chemical resistance
Typical Characteristics
Polyester polyols are known for creating polyurethanes with:
- High tensile strength
- Good abrasion resistance
- Excellent solvent and oil resistance
- Superior bonding performance in adhesives
- Higher hardness potential in elastomers
However, the presence of ester groups also makes them more sensitive to hydrolysis and moisture, which can limit durability in humid environments.
What Are Polyether Polyols?

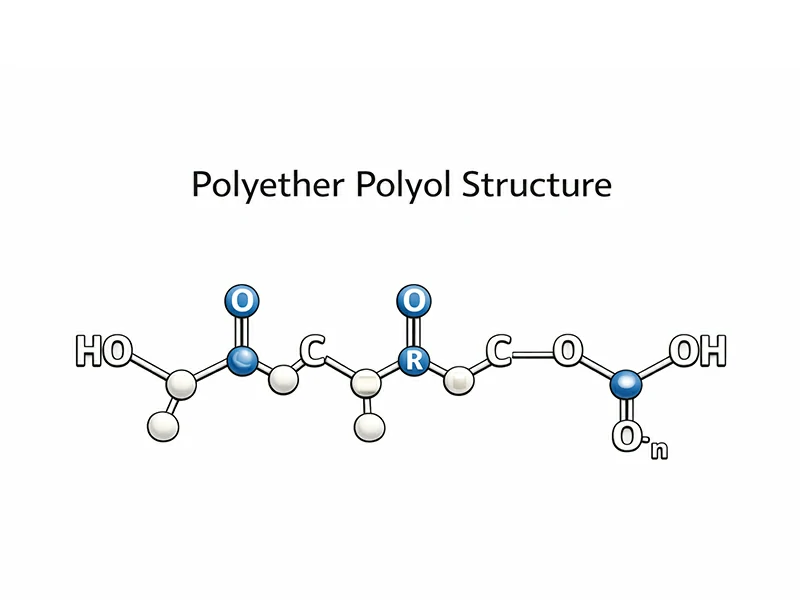

Chemical Structure and Production
Polyether polyols are manufactured mainly by ring-opening polymerization of epoxides such as propylene oxide (PO) or ethylene oxide (EO), using initiators like glycerol, sucrose, or amines.
Their chains are composed of ether bonds (–C–O–C–) rather than ester bonds. The resulting molecules are generally more flexible and less polar than polyester polyols.
Key Characteristics
Polyether polyols contribute the following advantages to PU systems:
- Lower viscosity and easier processing
- Good flowability
- High resilience in flexible foams
- Better resistance to water and humidity
- Excellent stability over long-term aging
- Wider compatibility with high pressure PU foaming equipment
For these reasons, polyether polyols are the preferred choice in large-scale rigid foam production and high-elastic molded foams.
Mechanical Property Comparison
Mechanical performance describes how a polyurethane material responds to external mechanical forces, including tension, compression, abrasion, and repeated loading.
Abrasion resistance is a key selection criterion in mechanical performances. Polyester polyol-based elastomers show excellent wear resistance, especially under mechanical stress. They maintain hardness and surface integrity longer.
Polyether polyols also offer good abrasion resistance, but typically lower than polyester counterparts. For heavy-duty industrial components, polyester polyols are often preferred.
Mechanical Property Comparison
| Mechanical Property | Polyester Polyol-Based PU | Polyether Polyol-Based PU |
| Tensile strength | 20–55 MPa | 10–35 MPa |
| Elongation at break | 300–600% | 400–800% |
| Hardness range | Shore A 80 – Shore D 75 | Shore A 10 – Shore D 60 |
| Abrasion loss (DIN, mm³) | 30–80 mm³ | 80–150 mm³ |
| Tear strength | 50–120 kN/m | 25–70 kN/m |
| Rebound resilience | 30–50% | 50–70% |
| Fatigue life (cyclic load) | Medium | High |
Chemical Resistance Comparison
Chemical resistance refers to a material’s ability to maintain performance when exposed to water, humidity, acids, bases, and harsh environments.
Hydrolysis resistance
Hydrolysis resistance is one of the most important differences between these two polyols. Ester bonds are vulnerable to water attack, especially under heat and humidity.
Over time, hydrolysis can lead to chain scission and material degradation. Polyether polyols, by contrast, are highly resistant to hydrolysis. Ether bonds remain stable even in humid or wet environments.
As a result:
- Outdoor insulation favors polyether polyols
- Marine and construction applications prefer polyether systems
- Polyester polyols are limited in high-moisture exposure
Oil and Solvent Resistance
In many industrial applications, polyurethane materials are exposed to oils, fuels, greases, and organic solvents. Resistance to swelling and degradation in these media is often critical.
Thanks to their higher polarity and denser molecular packing, polyester-based PU materials typically offer:
- Excellent resistance to mineral oils
- Good resistance to fuels and lubricants
- Lower swelling in many organic solvents
- Better dimensional stability in oil-rich environments
This makes polyester polyols a common choice for industrial rollers, oil seals, gaskets, and mechanical components that operate in contact with lubricants.·
Polyether-based PU materials tend to be more flexible and open in structure. When exposed to oils or solvents, they may show:
- Increased swelling
- Reduced mechanical strength over time
- Higher risk of dimensional change
While acceptable in many applications, polyether polyols are generally not the first choice for oil-immersed or solvent-exposed components.
Chemical Resistance Comparison Table
| Chemical Aspect | Polyester Polyol | Polyether Polyol |
| Water resistance | Fair | Excellent |
| Hydrolysis resistance | Low | High |
| Resistance to mild acids | Medium | Good |
| Resistance to mild alkalis | Medium | Good |
| Humid environment stability | Medium | Excellent |
Durability and Aging Resistance Comparison
Durability describes how well a material maintains its properties over time under the combined effects of mechanical stress, temperature, moisture, and environmental exposure.
Polyester-based PU materials often deliver excellent initial mechanical properties. However, under long-term exposure to heat and moisture, they may experience:
- Gradual loss of strength
- Increased brittleness
- Reduced service life in harsh environments
Polyester polyols are well suited for short-to-medium-term or controlled-environment applications, but may require additional stabilization for extended outdoor or humid use.
Polyether polyols are widely recognized for their outstanding aging resistance. Polyether-based PU materials typically show:
- Better retention of mechanical properties over time
- Strong resistance to hydrolysis aging
- Improved thermal aging performance
- Longer service life in real operating conditions
These advantages make polyether polyols ideal for long-life components, such as insulation systems, structural foams, and automotive interior parts.
Durability & Aging Comparison Table:
| Aging Aspect | Polyester Polyol | Polyether Polyol |
| Thermal aging (100 °C, 168h) strength retention | 70–85% | 85–95% |
| Hydrolysis aging resistance | Low–Medium | Excellent |
| Compression set (70 °C, 22h) | 20–35% | 10–25% |
| Long-term mechanical retention | Medium | High |
| Typical service life | Medium | Long |
Odor and VOC Emissions Comparison
Polyester polyols, because of residual acids and solvents from production, may carry stronger odor. In poorly ventilated workshops this can affect operator comfort.
Polyether polyols are typically cleaner and lower-odor. For consumer-facing products like pillows and refrigerators, this is a significant advantage.
Application Comparison
Polyurethane is not a single product—it is hundreds of different materials. The choice between polyester and polyether polyol usually follows the target industry.
Rigid Insulation Foam
Industries such as home appliances and cold-chain cabinets primarily use polyether polyols because they offer:
- Stable foaming
- Good dimensional stability
- Lower cost per volume
- Better aging resistance
Typical products:
- Refrigerator and freezer insulation layers
- PU foam panels
- Insulated containers
- Cold-room sandwich panels
Flexible Comfort Foam
For high-resilience seating and cushions, polyether polyols are again the mainstream choice. They can achieve rebound rates ≥60–70% or even higher with HR (high rebound) systems.
Common applications:
- Automotive seat cushions
- Sofa and mattress foam
- Pillows
- Toy cores
Coatings and Adhesives
This is where polyester polyols shine. PU adhesives formulated with polyester polyols provide outstanding bonding to metals, wood, plastics, and composites.
In protective coatings, polyester-based systems deliver:
- Higher hardness
- Better scratch resistance
- Strong solvent tolerance
Products include:
- Engineered wood flooring adhesives
- Industrial anti-corrosion coatings
- High-gloss paints
- Textile laminating binders
Elastomers
In cast polyurethane elastomers, polyester polyols help produce:
- Wheels
- Rollers
- Mining screens
- Seals and gaskets
- High-hardness structural parts
Polyether polyols are used when low temperature flexibility is required, but for wear-resistant components polyester polyols remain the first option.
Polyether polyols excel in humid, moderate-temperature environments. Selecting based on service conditions is critical.
Processing Performance Comparison
In polyurethane manufacturing, processing performance is just as critical as final mechanical properties.
It determines how easily a formulation can be mixed, poured, foamed, cast, and controlled during production—and directly affects scrap rate, productivity, and process stability.
Equipment Compatibility
Different polyols place different demands on equipment:
| Equipment Type | Polyester Polyol | Polyether Polyol |
| High-pressure PU machines | Good | Excellent |
| Low-pressure machines | Limited | Excellent |
| Manual casting | Difficult | Easy |
| Automated production lines | Good | Excellent |
| Wide mold geometry | Medium | Good |
Cost and Market Considerations
Polyether polyols are generally more cost-effective due to large-scale production. They benefit from mature supply chains.
Polyester polyols may have higher raw material costs. However, their performance advantages justify pricing in demanding applications.
Total cost evaluation should include:
- Processing efficiency
- Product lifespan
- Maintenance requirements
Lowest material cost does not always mean lowest total cost.
In the polyurethane industry, polyols are not interchangeable commodities. The difference between polyester polyols and polyether polyols influences every step of manufacturing—from storage and metering to mixing technology and the durability of the finished PU material.
- Polyester polyols deliver stronger, harder, more adhesive polyurethane systems ideal for TPU, elastomer wheels, and PU glues.
- Polyether polyols provide flexible, water-stable, easy-processing polyols that power most rigid foams and high-resilience comfort applications such as refrigerators and car seats.
A thorough understanding of both types enables manufacturers to make informed decisions, reduce risk, and create products perfectly matched to their industries.
